Products

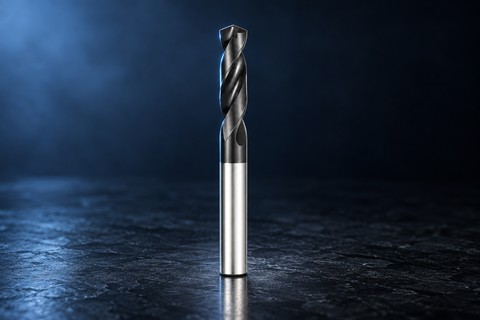

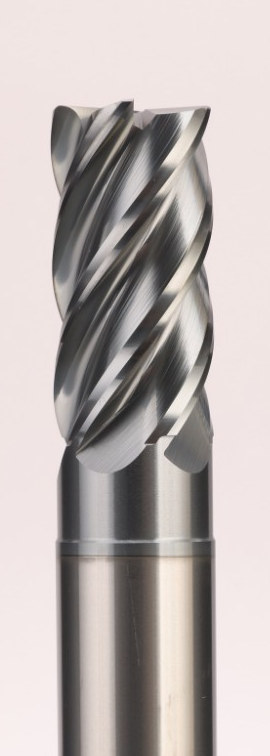

Two tool families. Solid Carbide End Mills (Z5) is published with ten variants — five diameters, each in a standard and an extended length. Solid Carbide Drills brings 3D and 5D together as two length options within one family. Technical specifications are confirmed before release.
- Tool families
- 3
- Published variants
- 10
- Awaiting release
- Drills 3D · 5D
- Facets in use
- 5 of 9
A facet appears on the day a value exists behind it. Four are declared and render nothing, because no value has been supplied.
Product Families
Filter, search and compare the published catalogue
Five facets operate on the ten published Z5 variants below. Search reads the way a machinist writes — Z5 12, 5 flute 16mm, R0.75, 6L — and two or more selections open a side-by-side comparison.
What the facets cover, and what search understands
Five facets operate on the 10 published Z5 variants below — family, diameter, shank diameter, length class and corner radius. Series and flute count are declared too and are not shown: Z5 is currently the only series and every published tool is five-flute, so each would offer a single choice and filter nothing. Both appear the day a second value exists. Search understands how a machinist writes: Z5 12, 5 flute 16mm, extended 10mm, R0.75, 125mm OAL, a part number, or a designation such as 6L. Selecting Solid Carbide Drills returns no published variants yet; choose 3D or 5D on the family page.
Every filter option corresponds to a published catalogue value. Coating, substrate, ISO application group and workpiece hardness are declared as facets in the catalogue generator and render nothing today, because no such value has been supplied for any variant — a filter with no data behind it is a filter that misleads. Each appears automatically on the day its data arrives.
Showing 10 of 10 published products.
Comparison
Published values only. Coating, ISO material group and workpiece hardness are the same across every Z5 variant, so they confirm rather than distinguish. Substrate and carbide grade are still awaiting manufacturer documentation and are not comparable here. Cutting data is published per variant on each product page, where it can be read against the material it belongs to.
| Compare | Family | Variant | Shank | LOC | OAL | Corner Radius | Flutes | Action |
|---|---|---|---|---|---|---|---|---|
| End Mills — Z5 | ⌀6.0mm | 6mm | 12mm | 63mm | 0.3mm | 5 | ||
| End Mills — Z5 | ⌀8.0mm | 8mm | 16mm | 63mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀10.0mm | 10mm | 22mm | 72mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀12.0mm | 12mm | 27mm | 83mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀16.0mm | 16mm | 32mm | 92mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀6.0mm L | 6mm | 15mm | 100mm | 0.3mm | 5 | ||
| End Mills — Z5 | ⌀8.0mm L | 8mm | 18mm | 100mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀10.0mm L | 10mm | 22mm | 125mm | 0.5mm | 5 | ||
| End Mills — Z5 | ⌀12.0mm L | 12mm | 22mm | 125mm | 0.75mm | 5 | ||
| End Mills — Z5 | ⌀16.0mm L | 16mm | 30mm | 150mm | 0.6mm | 5 |
Matching a diameter to an application
Flute count, corner radius and reach are decided before any cutting parameter is calculated. The Technical Center covers both, as general engineering reference.
Request a quotation.
Specifications, quantity tiers and lead times are confirmed in writing against your enquiry.
