Solid Carbide End Mills — Z5
Five-flute solid carbide end mills for hardened-material machining, published in five diameters and two length classes. Dimensional data, part numbers and the manufacturer’s cutting data are published for the current Z5 range. Substrate and carbide grade remain pending final manufacturer confirmation.
- Series published
- 1
- Published variants
- 10
- Diameter range
- 6.0 – 16.0 mm
- Flutes
- 5
Every figure above is read from the approved Z5 dataset. Nothing on this page is estimated.
Available series
Z5 Series
One geometry across the range: five flutes, a corner radius published per size, and a standard and an extended overall length at every diameter.
- Diameters
- 6 · 8 · 10 · 12 · 16
- Length classes
- Standard · L
- Flutes
- 5
- Shank
- Cylindrical, h6

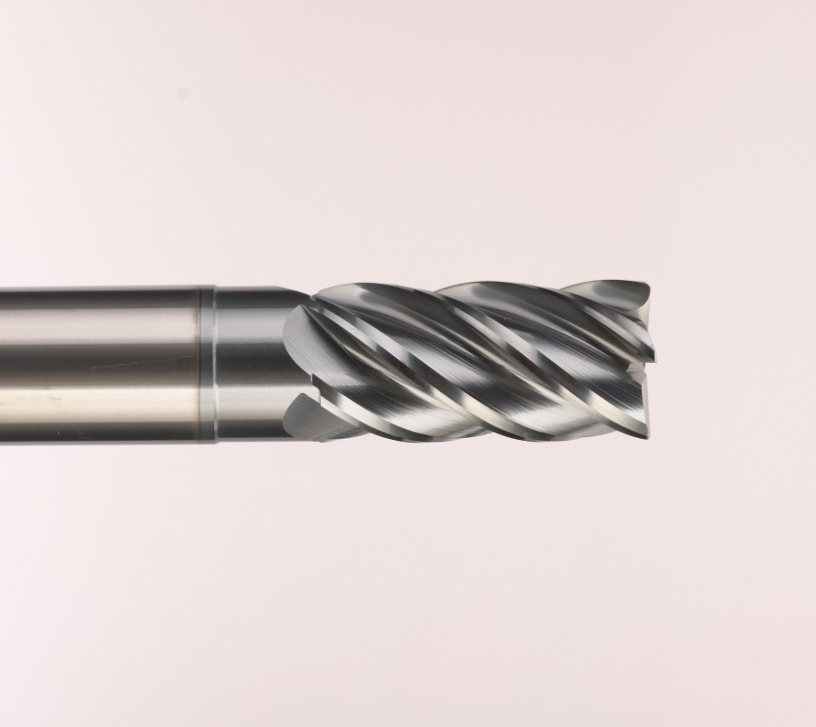

Representative Z5 Series product photography. Published dimensions vary by variant and are stated on each specification.
Matching a diameter to an application
Flute count, corner radius and reach are decided before any cutting parameter is calculated. The Technical Center covers both, as general engineering reference.
Request a quotation.
Specifications, quantity tiers and lead times are confirmed in writing against your enquiry.
